TOA AM-1W Set Array microphone & accessories


: £2,055.00 + VAT

Our price:
£1,849.50 + VAT

That's a 10% discount, saving you £205.50 on every unit!

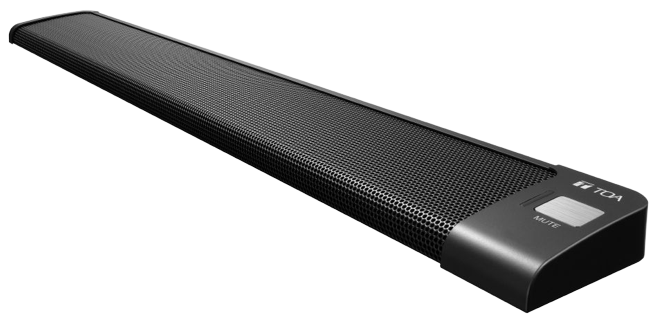

The AM-1W is a high sound quality microphone system that features automatic adjustment capability in a slim configuration. Composed of an array microphone connected to a separate control unit, it is ideal for installations and use on lecterns. The array microphone unit’s eight internal microphones detect and track the location of the sound source, picking up audio clearly and without interruption, allowing speakers to conduct presentations more naturally without worrying about the location of the microphone. In addition, setup of operation can be performed using an iPad? or PC browser. The control unit can be mounted in an EIA Standard rack with the use of optional rack-mounting brackets. (1-unit size)

Add to Wishlist
Add to Wishlist
SKU: AM-1WSet Category:

Product Features

  • Built-in voice detection sensor captures voice from up to 3 m and to tracking range angles up to 180 degrees
  • Level compensation for reduced volume variations
  • Narrow directivity assuring minimal acoustic feedback
  • Innovative pad-like form permitting unobtrusive placement
  • Removal of barrier between speaker and audience
  • Freedom to adopt a comfortable speaking posture
  • Ability to move and gesture naturally
  • Permits quick, one-touch adjustment of control unit parameter settings from an iPad using a dedicated app or firmware
  • Adjustment by PC is also possible
  • Tracking distance/range, sensitivity/speed, Mute on/off


Application Examples

  • Houses of worship
  • Conference rooms
  • Boardrooms
  • Auditoriums
  • Video Conferencing



Power source

24 V DC (supplied from the Control Unit)

Frequency response

150 Hz - 18 kHz


Steel plate, ABS resin, surface-treated, 30% gloss, traffic white (RAL 9016 or equivalent)

Dimensions (W x H x D)

483.9 x 22.1 x 64.9 mm


1.2 kg



Data Sheets

Data Sheet
